Seaworld 10hp Stainless Steel Transom Fit Rise & Fall Bracket

Seaworld 10hp Stainless Steel Transom Fit Rise & Fall Bracket

Seaworld brand.
Light duty application.  Stainless steel construction.
Adjustable for different transom angles (see note below).
10hp/7.5kw (2 stroke) or 38kg maximum (long shaft models 8hp max.).
Small mounting foot print: 140mm high x 103mm wide.
Vertical movement: 300mm.
Transom set back 320mm.
Timber width: 170mm

Note: by swapping the two transom mounting brackets the Rise & Fall Bracket can be mounted on reverse angle/raked (retroussé) transoms.

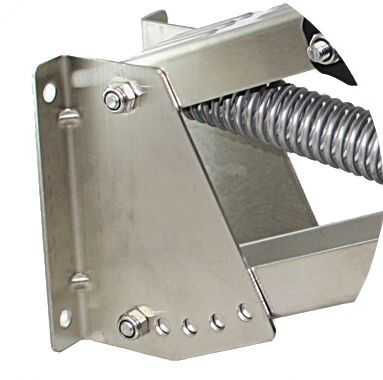

THIS HAS THE ADJUSTABLE BRACKET AS IN BELOW PICTURE:

4.4kg
